L31 Electric Bike
City e-bike with Shimano 7-speed, hydraulic disc brakes and front suspension.
Features at a Glance
Performance
- Motor:1000W (PEAK 1500W), 80Nm
- Battery:48V 23Ah Removable Battery
- Top Speed:53km/h (speed limited to 25 km/h)
- Range:110-160km (pedal assist mode); 80-120km (pure electric mode)
- Max Climbing Angle:40°
User-Friendly Features
- Transmission System:Shimano 7-Speed
- Brake:Front & Rear Hydraulic Disc Brake
- Wheel:28 inch Aluminum Alloy Spoke Wheel
- Fork:Suspension Front Fork
- Light:LED Taillight With Brake Warning
- Display:YL61F-D Bluetooth LCD Display
- Pedal Assist Level:1-5 levels
Rider Fit
- Frame:High Carbon Steel
- Scenario:Off-Road, Adventure
Description
L31 — City e-bike with Shimano 7-speed, hydraulic disc brakes and front suspension.
>
Shimano 7-Speed Drivetrain
A Shimano 7-speed drivetrain gives the L31 the right gear for city streets, rolling hills and changing headwinds. Shifting stays crisp and dependable under load, ride after ride.

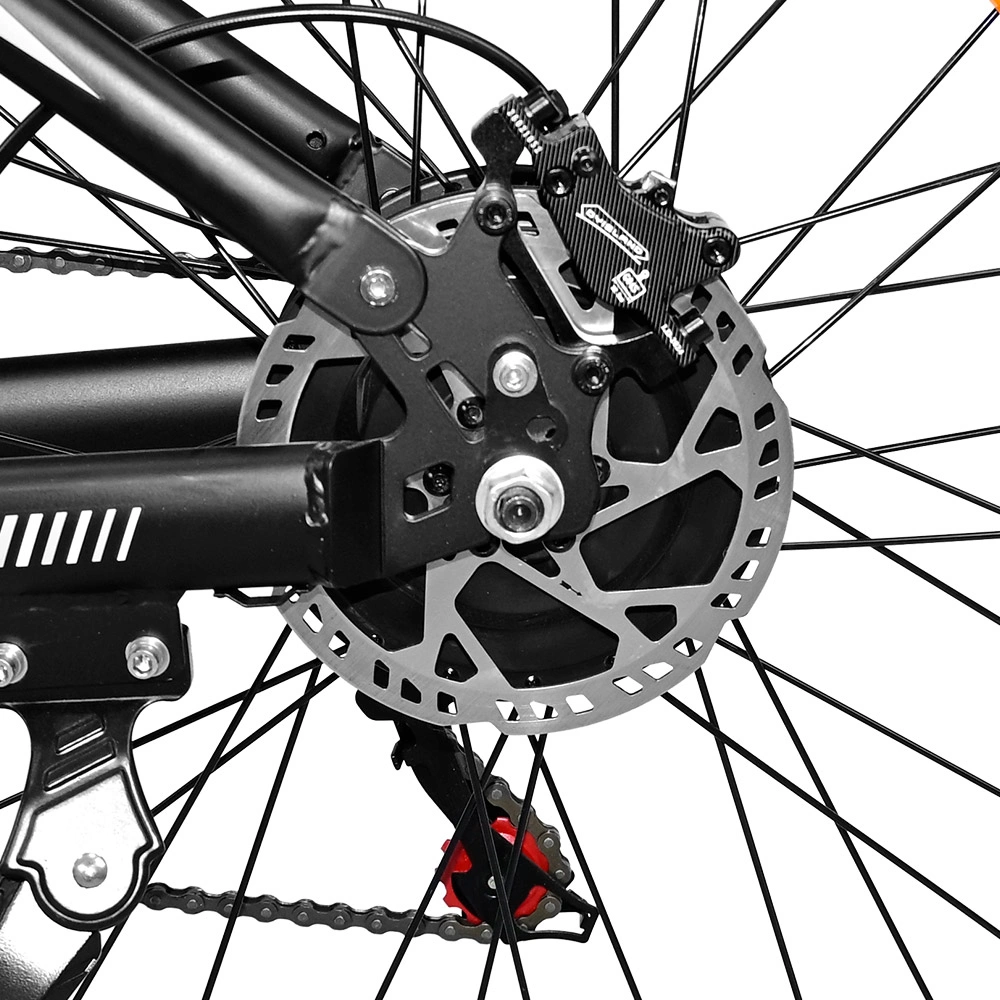

Hydraulic Disc Brakes
Front and rear hydraulic disc brakes deliver reliable all-weather stopping power with precise, easy control — confident braking on descents, in wet traffic and on emergency stops.

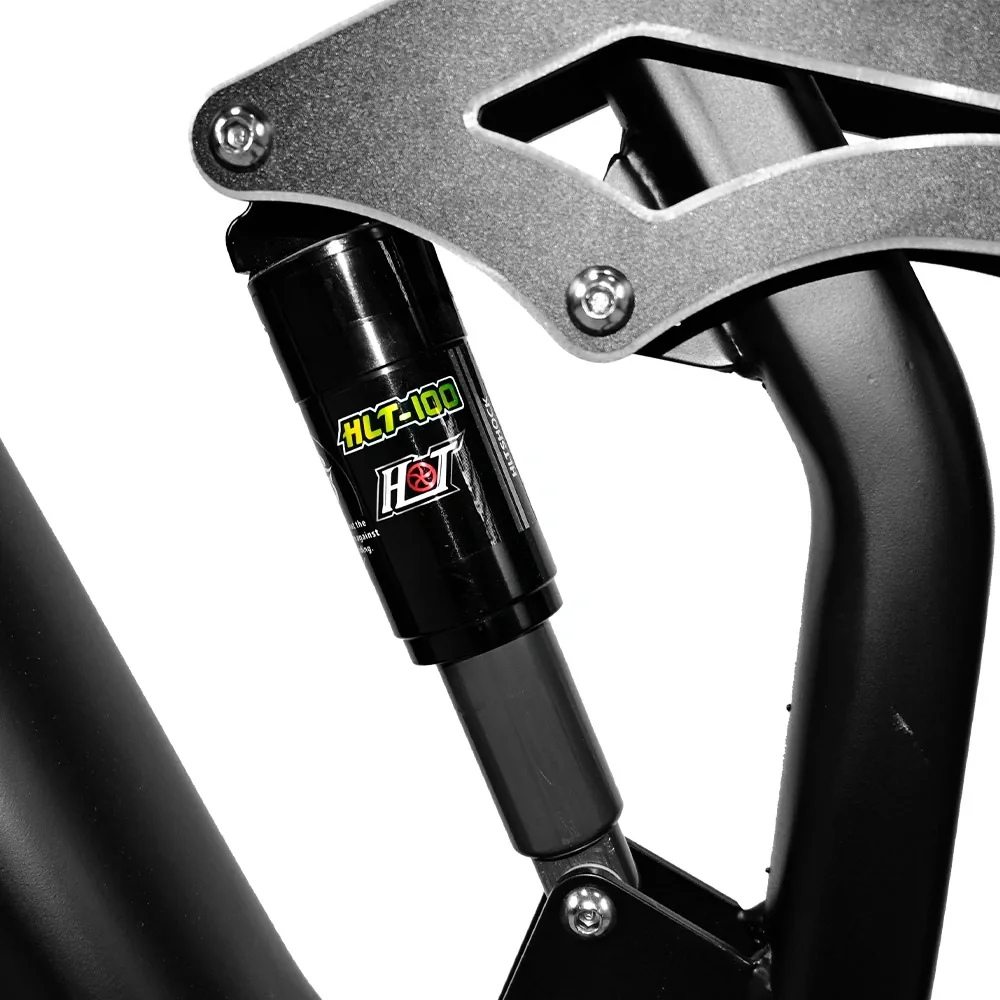

Rear Suspension
A rear suspension shock absorbs bumps and vibration from rough pavement and light trails, keeping the ride smooth and the rear wheel planted for better comfort and control.
Bright LED Headlight
A bright LED headlight lights up commutes before dawn and after dusk, so you can see the road clearly — and traffic can see you.
LED Taillight
An integrated LED taillight keeps you visible from behind in traffic and low light, completing the L31’s full lighting package for safe riding around the clock.
Highlights of the L31
Shimano 7-Speed Gearing
Seven gears cover city ramps and flat cruising, with dependable Shimano shifting under load and easy, low-cost servicing.
Hydraulic Disc Brakes
Front and rear hydraulic discs give consistent stopping power with light lever effort, whatever the weather.
Front Suspension Fork
The suspension fork absorbs potholes, kerbs and cobbles, keeping the front wheel tracking straight and the ride comfortable.
Built Around Your Comfort & Convenience
IP68 Waterproof Display
Rain or storm, the display keeps working. No stress when you are far from repair shops.
Central Integrated Display
Best viewing angle for quick info access. Information stays readable in bright sunlight.
Walk Assist, EU Compliant
6 km/h throttle mode, meets the regulations of most EU countries. Push uphill easily.
Unlock Battery via App
App for smart convenience, password lock for easy sharing, or the key as a reliable backup.
S-RIDE 9-Speed Drivetrain
Handles hills and long rides with a wider gear range and smoother shifting.
Specifications
| Motor | 1000W(PEAK 1500W) | Torque | 80 Nm | Battery | 48V 23Ah |
|---|---|---|---|---|---|
| Battery Charger | 54.6V3A | Charging Time | 6-8 Hours | Display | YL61F-D Bluetooth LCD Display |
| Max Range | 56–64km (pure electric mode); 80–96km (pedal assist mode) | Top Speed | 53km/h(speed limited to 25 km/h) | Max Climbing Angle | 40° |
| Frame | High Carbon Steel | Handlebar | Aluminium Alloy Drop Handlebars | Crank | Aluminium Alloy Crank (170 mm) |
|---|---|---|---|---|---|
| Transmission System | Shimano 7-Speed | Fork | Steel Suspension Front Fork | Rear Shock | Non-Adjustable |
| Front Brake | Hydraulic Disc Brake | Rear Brake | Hydraulic Disc Brake | Front Wheel | 27.5-inch Aluminium Alloy Spoked Wheel |
| Rear Wheel | 27.5-inch Aluminium Alloy Spoked Wheel | Headlight | LED Headlight | Taillight | LED Taillight With Brake Warning |
| Pedal | Aluminium Alloy Pedals | Mudguard | Plastic Mudguards | Rear Rack | None |
| Bike Weight | 35KG | Certification | CE Certified | Product Size | 1960*700*1080mm |
|---|---|---|---|---|---|
| Available Color | Black | Pedal Assist Level | 1-5 Level | Recommended Rider Height | Suitable For Riders 170 cm And Above |
| Pedal Assist System | Torque Sensor | Ingress Protection Rating | IP54 | Operating Temperature | -20°C to 45°C / -4℉ to 113℉ |
| Max Load Capacity | 150KG | Package Include | Charger, User Manual, Toolkit, Fender, Pedal |
FAQ
Shimano 7-speed gearing: a low ratio for steep city ramps and a taller one for keeping pace on the flat, with shifting that stays crisp under load.
Yes. Front and rear hydraulic disc brakes are fitted as standard, giving dependable stopping power with light lever effort in rain and traffic.
The front suspension fork absorbs potholes, kerbs and cobbles, keeping the front wheel tracking straight and reducing fatigue on longer rides.
